New amp!

posted on #1
User Avatar
Moderator
Posts: 168
Joined: 27.11.11
Well, not brand new, quite old actually but new to me :)

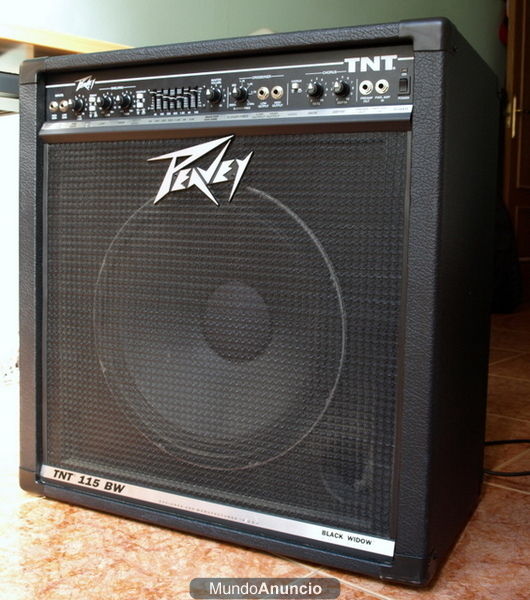

It's a Peavey TNT 115 BW, 150w into 4Ω with a 15" speaker. Needs the smoothing caps replacing (there's a bit of buzzing) but they're not expensive and I can drive a soldering iron so it shouldn't be a problem.

Not sure my neighbours are going to be as happy as I am about it hehehe....
ChrisB attached the following image:



Edited by ChrisB on February 04 2012 23:31
posted on #2
User Avatar
Founder
Posts: 2236
Joined: 30.12.10
yeah, that looks REALLY GOOD! play a nice warm-up greeting to the neighbours before turnig it up fer real, lol
"Sorry - had to do it!" - Les Claypool

yes, you are looking at the administrators signature.
posted on #3
User Avatar
Moderator
Posts: 168
Joined: 27.11.11

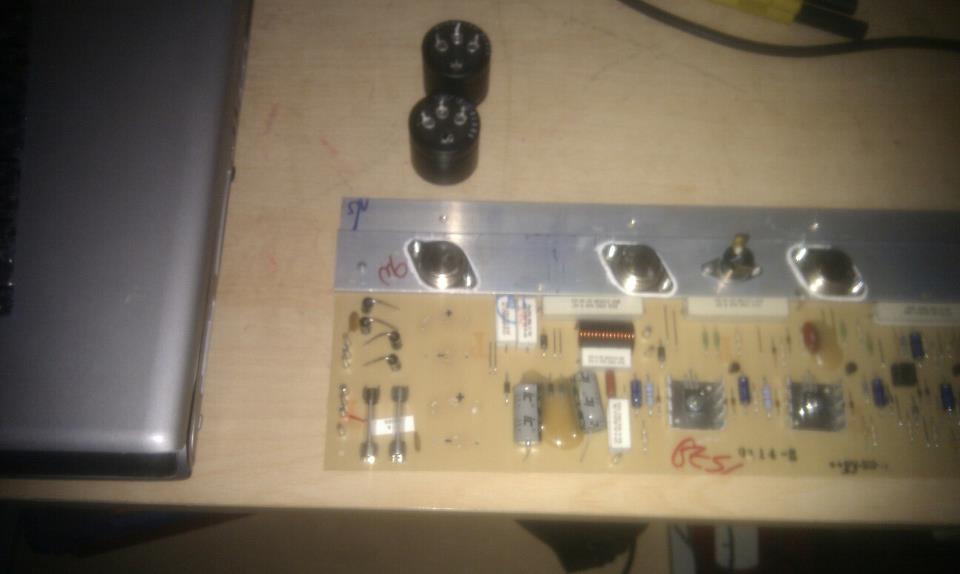

Smoothing caps desoldered, postman should be delivering the replacements on Tuesday...
ChrisB attached the following image:


posted on #4
User Avatar
Moderator
Posts: 168
Joined: 27.11.11

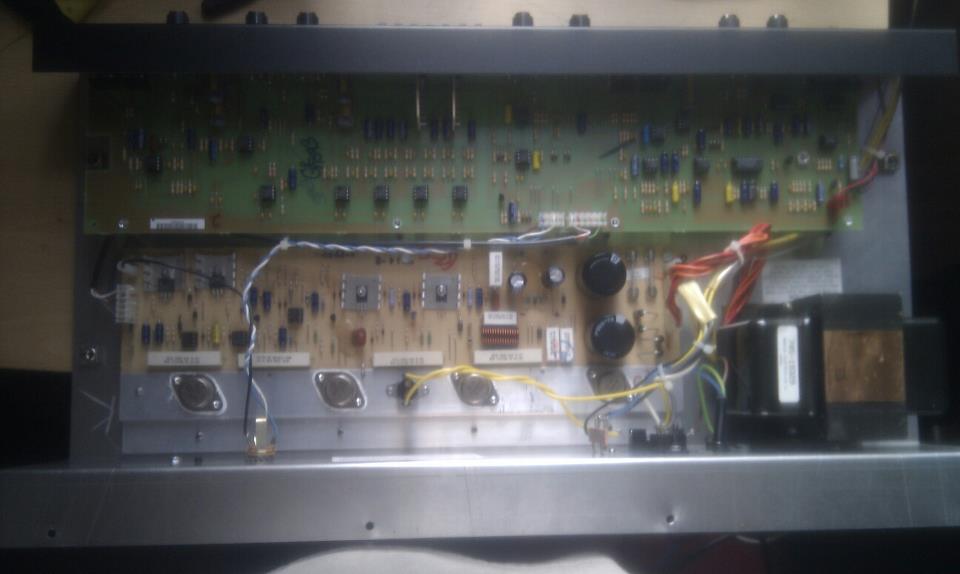

New capacitors fitted, power amp board back in the tray. I replaced the secondary caps as well seeing as they're about the same age. Couldn't get axial ones at a decent price so I used radials instead. Time for a quick test before fitting it all back together....
ChrisB attached the following image:



Edited by ChrisB on February 07 2012 16:03
posted on #5
User Avatar
Moderator
Posts: 168
Joined: 27.11.11
....and it's all good! No horrible buzz and it sounds 100x better :D
posted on #6
User Avatar
Founder
Posts: 2236
Joined: 30.12.10
respect man, I'd never have attempted that :)
you got some electro-education to do stuff like that?
"Sorry - had to do it!" - Les Claypool

yes, you are looking at the administrators signature.
posted on #7
User Avatar
Moderator
Posts: 168
Joined: 27.11.11
Cheers man, no actual training, just an amateur hehehe. I have the internet for research and have a few friends who are electronics engineers so I can ask for advice. Also, old equipment is pretty simple and there's loads of space on the board - It would have been far more difficult with a modern amp.

It sounds *really* nice now too :)
Edited by ChrisB on February 08 2012 00:42
